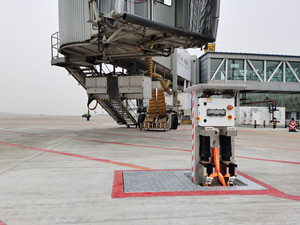

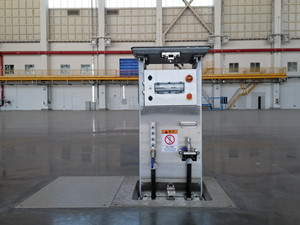

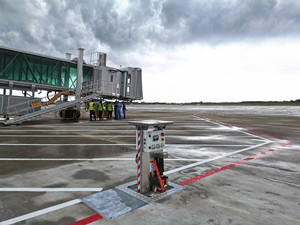

Lift shaft
The principle of mechanical balance weight is adopted, that is, the balance between the shaft body and the weight block, to realize the lifting action of the shaft, without external power assistance such as motor drive, boost spring, air support, etc., so the operation is easy, simple, convenient and safe. No broken movies, no maintenance.
1. technical advantages
In the new generation of technology, we have adopted the mechanical balance counterweight lifting mechanism without external power, avoiding the disadvantages of high failure rate, poor maintenance and short service life of the motor driving mode. We make the lifting mechanism simple and reliable, realize maintenance free, and improve the service life.
In the early design of the well cover material, due to the limitation of the lifting technology, the type selection is based on the light weight, while taking into account the load-bearing problem, often can not get a good solution, so the design and selection of the special aluminum alloy materials are used. With the increase of application, due to the shortcomings of aluminum material, such as low strength, easy to fracture, poor fatigue, etc., cracks and fractures occurred in later use, which caused serious losses to our users.
Today's technological innovation and the way of lifting and lowering the mechanical balance weight make us no longer limited by the self weight of the product. In terms of materials, we chose the European standard S355 high strength special alloy steel material with higher bearing capacity and better deformation recovery capacity, which can bear the weight of 90 tons of a single wheel of the aircraft (not the destructive strength), realize the barrier free operation of the aircraft, and make the application safer Reliable!
2.Product features
1. Imported components, quality assurance
We follow the first-class engineering design standards, carefully selected top-level components, made of high-end materials. Our products can withstand the most severe plateau, wind, sand, sea and other harsh environmental conditions. The best product technology, top-level materials and the most strict manufacturing process make our products almost need no maintenance.
2. Fast guarantee, the best allocation of energy supply
Through the effective configuration of the well platform, it makes the application of the required energy more simple and convenient, solves the management trouble of the single point support mode and the shortcomings of high operation cost, reduces the maintenance cost, improves the life cycle of the equipment, and the life of the well body is not less than 30 years.
3. Intelligent and modular structure design makes the application easy to combine
We integrate diversified applications into standardized wells according to users' needs to provide users with the greatest possible degree of freedom. We will solve the problem of how to realize it for you, and fully consider the user experience and later application expansion.
4. Simplified pit design
We use concrete to pour the pit body, avoiding the disadvantages such as poor bearing capacity, fragility and deformation of the FRP tube body, making the civil construction simpler and cheaper, and the pit body has larger maintenance space.
5.Flexible cable (pipe) storage mode
The cable adopts super flexible special cable, which is naturally stored in the well pit without the assistance of drum. Skillfully designed auxiliary mechanical guide wheel ensures that the operator can easily pull out the cable. According to the explosion-proof code of aircraft hangar, electric retracting device shall not be used in the pit.
6. Simple field installation
After the overall assembly and adjustment of the equipment in the factory, the equipment will arrive at the site, be hoisted into the well pit as a whole, and then be connected with various pipelines. We strictly avoid the installation of components on site to ensure the best mechanical lifting effect.
7. Lift shaft
The principle of mechanical balance weight is adopted, that is, the balance between the shaft body and the weight block, to realize the lifting action of the shaft, without external power assistance such as motor drive, boost spring, air support, etc., so the operation is easy, simple, convenient and safe. No broken movies, no maintenance.
3.Main body selection
|
type
|
Widening type
|
Standard form
|
Mini type
|
|
Pit size (length × width × depth)
|
3000×3000×3000mm
|
2700×2700×3000mm
|
2000×2000×3000mm
|
Self weight (section)
|
1500-2000 kg
|
1200-1500 kg
|
800-900 kg
|
Raise ground level
|
1200mm
|
1200mm
|
1200mm
|
Adaptive environment
|
It can be used indoors and outdoors (it is suitable for severe environment such as high cold, plateau, seawater corrosion, rainwater, sandstorm, etc.)
|
4.Component options
· Emergency stop switch
· Hydraulic detection self control drainage system
· Maintenance well cover
· Fire alarm system
· Explosion proof lighting system
· Drying and dehumidification system
· Well cover heating system
· Power frequency, intermediate frequency, DC and weak current explosion-proof junction box (IP67)
· Cable (pipe) splitting mechanism
· Cable storage (pipe) basket
5.configuration option
· 380V / 220V / 36V, 50Hz industrial socket;
· 1-4 groups of if or DC aircraft power cables (length ≤ 18m);
· 1-2 groups of ￠ 200 air conditioning pipes (length ≤ 18m);
· Hydraulic pipeline (select according to parameters);
· Air tight pipe and interface (select according to parameters);
· Water / blue water / sewage pipe;
· Others: compressed air, network, optical fiber, electrostatic grounding, dust removal, display and control panel of superior energy unit (power supply, air conditioning, hydraulic pressure), etc.
· Note: the component and configuration selection shall be completed by our company's technical engineer together with you.
